METRUM 2

Dual Channel, High Accuracy Digital Thermometer

METRUM 2 Dual Channel Digital Thermometer has been designed to meet the demands of fertility clinics and research laboratories.

It is small in size and extremely easy to use. It delivers accurate and repeatable temperature measurements saving precious time on QC operations.

Embryologists can use the METRUM 2 to perform temperature measurements on liquids, surfaces and calibrate incubators, laminar flow cabinets, biosafety cabinets, and warming systems.

The unit is supplied with two specially designed high-accuracy temperature measurement probes.

Digital thermometer for IVF Quality control procedures with 2 sensor probes. A thermocouple needle probe on a probe holder aiming at a petri dish and a disk probe with a wire

METRUM 2

Dual Channel, High Accuracy Digital Thermometer

METRUM 2 Dual Channel Digital Thermometer has been designed to meet the demands of fertility clinics and research laboratories.

This advanced device combines cutting-edge technology with an array of features to meet various applications’ diverse temperature monitoring needs.

Embryologists can use the METRUM 2 to perform temperature measurements on liquids, surfaces and calibrate incubators, laminar flow cabinets, biosafety cabinets, and warming systems.

The unit is supplied with two specially designed high-accuracy temperature measurement probes.

Image showing IVF procedure steps and importance of Temperature

"Temperature measurements and temperature control during the IVF process are crucial for outcomes."

Dr. Lars Johansson

International ART Consultant
Image showing IVF procedure steps and importance of Temperature

"Temperature measurements and temperature control during the IVF process are crucial for outcomes."

Dr. Lars Johansson

International ART Consultant
2 circles representing dual channel

Dual Channel

Dual channel temperature measurement

target icon representing High Accuracy

High Accuracy

Temperature accuracy ± 0.03°C for both channels in the physiological range

Multiple sensor compatibility icon

Multiple Sensors

Integrate up to 10 sensor probes
per channel

monitor icon

Desktop Software

Real time data viewing
on PC

Handheld Dual channel Digital thermometer for IVF laboratories in Quality Control.
Handheld Dual channel Digital thermometer for IVF laboratories in Quality Control.
Black color Digital thermometer for IVF laboratories in Quality Control.
Handheld Dual channel Digital thermometer for IVF laboratories in Quality Control.

Metrum 2 Thermometer Features

  • Dual channel temperature measurement
  • Each sensing channel can be configured to operate 10 distinct types of T-Type thermocouples and RTD/ PT100 sensors.
  • Temperature display Celsius/Fahrenheit
  • Ambient temperature measurement
  • Displays Minimum, Maximum, or Average temperature
  • Hold function
  • High and low alarms for rapid detection of temperatures outside the limits
  • Date and time display
  • Powered by a single 9V battery
  • Ability to power via USB (Adaptor included)
  • Battery life indicator
  • USB connectivity to monitor/analyze temperature on PC

"Designed and Engineered for accuracy
and reliable results every time...."

Metrum 2 Thermometer Features

  • Dual channel temperature measurement
  • Each sensing channel can be configured to operate 10 distinct types of T-Type thermocouples and RTD/ PT100 sensors.
  • Temperature display Celsius/Fahrenheit
  • Ambient temperature measurement
  • Displays Minimum, Maximum, or Average temperature
  • Hold function
  • High and low alarms for rapid detection of temperatures outside the limits
  • Date and time display
  • Powered by a single 9V battery
  • Ability to power via USB (Adaptor included)
  • Battery life indicator
  • USB connectivity to monitor/analyze temperature on PC
IVF dual channel digital thermometer with 2 temperature readings on display

"Designed and Engineered for accuracy and reliable results every time...."

Thermocouple needle probe on a probe holder aiming to measure temperature on a petri dish

Liquid Temperature Measurement

  • The liquid measurement probe is suitable for liquid temperature measurement inside Petri-dishes and test tubes.
  • Probe holder to hold the sensor probe in place.
  • An ultra-fast response 29 gauge 10 mm long needle allows instant temperature measurements.
  • The needle tip is sealed to ensure only the stainless steel tip is in contact with the specimen.
  • A high accuracy copper-constantan sensor within the stainless steel shaft measures the temperature
  • The probe is autoclavable at 135°C and sterilized with Iso propyl alcohol.
  • When conducting measurements with a thermometer, the crucial factor to keep in mind is consistency.
  • The positioning of the probe tip can also impact the temperature reading.
  • The combination of the needle probe and the probe holder allows for achieving consistent and precise temperature measurements of media droplets.
  • Once the probe tip is placed inside the droplet, it remains steady, ensuring reliability and consistency.
Inclined placement of liquid measurement probe to measure a liquid droplet in a Petri dish.
Disk shaped 3 wire RTD sensor made of copper for surface temperature measurement.

Surface Temperature Measurement

  • The surface measurement probe is suitable for surface temperature measurement inside incubators and on any heated surfaces.
  • The surface probe can be placed on an incubator shelf or bottom. It can also be placed inside Petri-dishes.
  • The sensor probe is heavy enough to ensure complete contact and prevent unnecessary movement during measurements.
  • A large surface made of copper allows faster stabilization (< 50s) of the sensor probe and minimal heat absorption from the surfaces.
  • A durable & liquid-resistant stainless steel top.
  • High Accuracy PT100 RTD sensor for reliable and accurate measurement.
  • A flat extension cable allows the incubator to shut completely.

Time Lapse Incubator/ Standard Incubator / Petri Dish Temperature Measurement

  • Ultra-thin Ø 0.23mm probe for temperature measurements in Incubators and Time-Lapse Incubators.
  • Can be used to measure inside liquids inside petri dishes as well.
  • An ultra-fast response probe.
  • Supplied as an alternative to the liquid temperature measurement probe.
  • Can be sterilized with Iso propyl alcohol.
  • Ultra-fine flexible twisted probe is a high-accuracy 23-gauge sensor insulated with Teflon.
  • Ultra-fine flexible probe is a high-accuracy 24-gauge polyurethane coated wire with polyester insulated thermocouple bead.
Ultra thin flexible sensor probe to measure temperature of Embryoscopes, Incubators and liquids inside Petri Dishes
Blue and Red flexible twisted sensor probe to measure temperature of Embryoscopes, Incubators and liquids inside Petri Dishes

Multi-Well Dishes

  • Precise calibration customized for multiwell dishes.
  • The surface probe can be placed on an incubator shelf or bottom. It can also be placed inside Petri-dishes.
  • Compatible with leading Petri dish brands for seamless integration.

Cryogenic Temperature Sensor

  • Designed to operate in extreme cryogenic environments.
  • Built with durable materials to withstand harsh cryo conditions.
  • Compatible with a range of cryogenic storage freezers and refrigeration systems and applications.
Cryo sensor probe with stainless steel measurement end

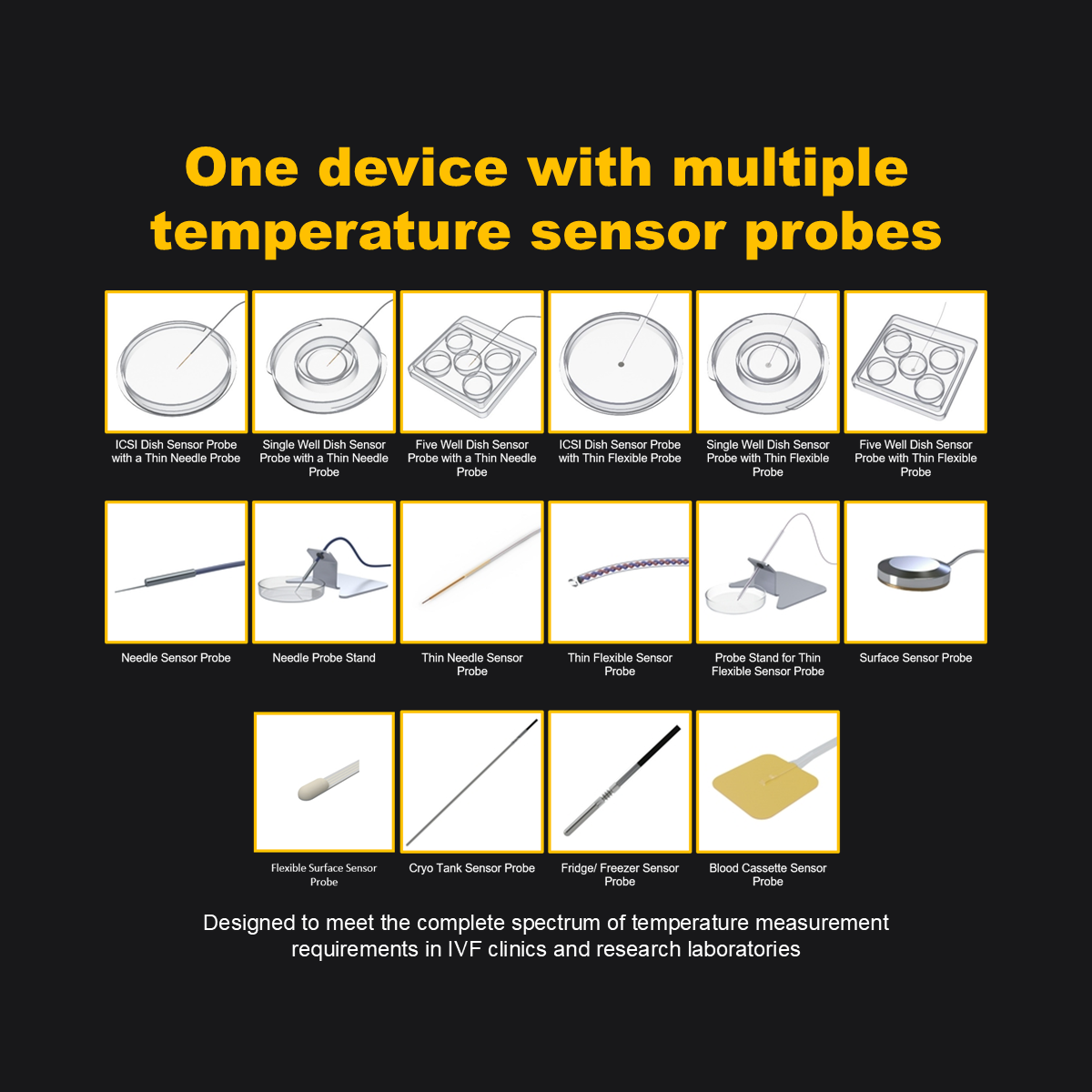

Connect up to 10 x Thermocouple and RTD Sensors

Limitless Potential

Connect up to 10 different types of Thermocouple sensors and 10 different types of RTD sensors.

Seamless Interchangeability

Effortlessly switch between various thermocouple sensors and RTD sensors, with calibration values conveniently stored on the device.

Uncompromised Accuracy

±0.03°C accuracy for every type of thermocouple and RTD you use (†).

(†) This assurance applies exclusively to the sensors we provide.

Metrum 2 digital thermometer connection with multiple sensors for thermocouple and rtd channels

Specifications - Metrum 2 Dual Channel Digital Thermometer

TMP1000S

Operating temperature

5°C to 40°C

Display type

Custom LCD

Display range

-573.32°C to +537.77°C

Display resolution

0.01°C

Thermometer accuracy

±0.03°C in the physiological range

Temperature resolution

0.01°C

Connectivity

USB

(†) Tested with a Duracell Ultra Alkaline Battery

CE certification logo adhering to IEC Standards EN 61010 and EN 61326
2 Years warranty Image png for digital thermometer

Automatic power off

Default 5min / adjustable

Battery type

1 x 9V Alkaline battery

Battery life

Approximately 60 hours (†)

Power supply

Micro USB (PC/adaptor)

Dimension (L x W x H)

203mm x 66mm x 54 mm

Net weight

180g

Standard warranty

2 Years

TSP1000P1

Sensor type

T-Type thermocouple

Dimensions

sensor tip Ø = 0.34mm
sensor tip length = 12mm
cable length = 1500mm
cable thickness = 2.5mm

Measuring range

-50°C to +200°C

Accuracy

±0.03°C in the physiological range

Response time

0.13s to 0.25s​

TSP1000P2

Sensor type

3 Wire RTD

Dimensions

sensor disk Ø = 35mm
disk height = 8.5mm
cable length = 1000mm
cable thickness = 0.8mm

Measuring range

-50°C to +200°C

Accuracy

±0.03°C in the physiological range

Response time

< 50s

TSP1000P3

Sensor type

T-Type thermocouple

Dimensions

sensor tip Ø = 0.23mm
cable length = 910mm
cable thickness = 0.23mm

Measuring range

-100°C to +150°C

Accuracy

±0.03°C in the physiological range

Response time

0.025s to 0.05s

TSP1000P4

Sensor type

T-Type thermocouple

Dimensions

sensor tip Ø = 0.23mm
cable length = 910mm
cable thickness = 0.23mm

Measuring range

-50°C to +70°C

Accuracy

±0.03°C in the physiological range

Response time

0.02s to 0.04s

METRUM 2 MSA

(Multi Sensor Adaptor)

Accessory to Metrum 2 Digital Thermometer

METRUM 2 MSA has been designed as an accessory (†) to compliment the Metrum 2 Digital Thermometer to meet the demands of fertility clinics and research laboratories.

Embryologists can use the METRUM 2 MSA to simultaneously measure up to 10 surface measurements enabling them to calibrate multi- channel incubators and to measure heated surfaces on workstations.

The METRUM 2 MSA connects to the METRUM 2 Digital Thermometer via USB. A separate USB connects to the PC for real-time data viewing.

The temperature readings can be viewed on the METRUM 2 Digital Thermometer as well as the PC Software.

The unit is supplied with up to 10 specially designed high accuracy RTD temperature measurement probes.

(†) Metrum 2 MSA can only be used in conjunction with the Metrum 2 Digital Thermometer.

Dual Channel Digital thermometer and Multi Sensor temperature adaptor for IVF laboratory

METRUM 2 MSA

(Multi Sensor Adaptor)

Accessory to Metrum 2 Digital Thermometer

METRUM 2 MSA has been designed as an accessory to compliment the Metrum 2 Digital Thermometer to meet the demands of fertility clinics and research laboratories.
Embryologists can use the METRUM 2 MSA to simultaneously measure up to 10 surface measurements enabling them to calibrate multi- channel incubators and to measure heated surfaces on workstations.

The METRUM 2 MSA connects to the METRUM 2 Digital Thermometer via USB. A separate USB connects to the PC for real-time data viewing.

The temperature readings can be viewed on the METRUM 2 Digital Thermometer as well as the PC Software.

The unit is supplied with up to 10 specially designed highaccuracy RTD temperature measurement probes.

(†) Metrum 2 MSA can only be used in conjunction with the Metrum 2 Digital Thermometer.

2 circles representing dual channel

10 Channels

10 surface temperature measurement channels

target icon representing High Accuracy

High Accuracy

Temperature accuracy ± 0.03°C for all 10 channels in the physiological range

SD card

MicroSD Card

Data logging on Metrum 2 Digital Thermometer

monitor icon

Desktop Software

Real time data viewing
on PC

USB powered 10 channel multi temperature sensor adaptor (data logger) for IVF laboratory
USB powered 10 channel multi temperature sensor adaptor (data logger) for IVF laboratory
USB powered 10 channel multi temperature sensor adaptor (data logger) for IVF laboratory
USB powered 10 channel multi temperature sensor adaptor (data logger) for IVF laboratory

Metrum 2 MSA Features

  • Up to 10 temperature measurements
  • Interface to Metrum 2 Thermometer via Micro USB
  • Temperature display Celsius/Fahrenheit
  • Computes Minimum, Maximum, or Average temperature
  • High and low alarms for rapid detection of temperatures outside the limits
  • Hold function
  • Powered by PC USB or 5V power adaptor
  • LED for Status indication
  • Date and time display
  • Ability to store data on MicroSD card
  • USB connectivity to monitor/analyze temperature on PC
USB powered 10 channel temperature sensor adaptor (data logger) for IVF laboratory

Metrum 2 MSA Features

  • Up to 10 temperature measurements
  • Interface to Metrum 2 Thermometer via Micro USB
  • Temperature display Celsius/Fahrenheit
  • Computes Minimum, Maximum, or Average temperature
  • High and low alarms for rapid detection of temperatures outside the limits
  • Hold function
  • Powered by PC USB or 5V power adaptor
  • LED for Status indication
  • Date and time display
  • Ability to store data on MicroSD card
  • USB connectivity to monitor/analyze temperature on PC

Specifications - Metrum 2 MSA

TMP1000MSA

Operating temperature

5°C to 40°C

Thermometer accuracy

±0.03°C in the physiological range

Display resolution

0.01°C

Power On/Off

Push button switch

Connectivity

USB

PC interface

Micro USB

Thermometer interface

Micro USB

Power supply

Micro USB (PC/adaptor)

Dimension (L x W x H)

180mm x 140mm x 71 mm

Net weight

565g

Standard warranty

2 Years

(†) Tested with a Duracell Ultra Alkaline Battery

TSP1000P2

Sensor type

3 wire RTD

Dimensions

sensor disk Ø = 35mm
disk height = 8.5mm
cable length = 1000mm
cable thickness = 0.8mm

Measuring range

-50°C to +200°C

Accuracy

±0.03°C in the physiological range

Response time

< 50s

A Digital thermometer connected to multi sensor adaptor via a USB cable with 4 surface disk sensors, 2 petri dishes and a thermocouple needle sensor in background.

Calibration

3 Point calibration graph for temperature sensors
  • Inbuilt calibration function eliminates the need to add correction factors during readings.
  • Unique calibration algorithm eliminates fluctuations.
  • 3 - Point calibration (32°C, 37°C, 40°C) enhances accuracy.
  • Traceable calibration certificate included for each sensor probe.

PC Software

  • Real-time temperature analysis on PC via USB.
  • In-depth analysis of data can be performed by zooming in on critical points.
  • Able to export graphs from the PC software.
  • Able to select channels to view temperature data.
  • Data can be saved in CSV or Excel format for later use.
PC Software screenshot with 12 Temperature display sections with Min, Max, Avg values and Plots with time axis and temperature

Hard Carry Case

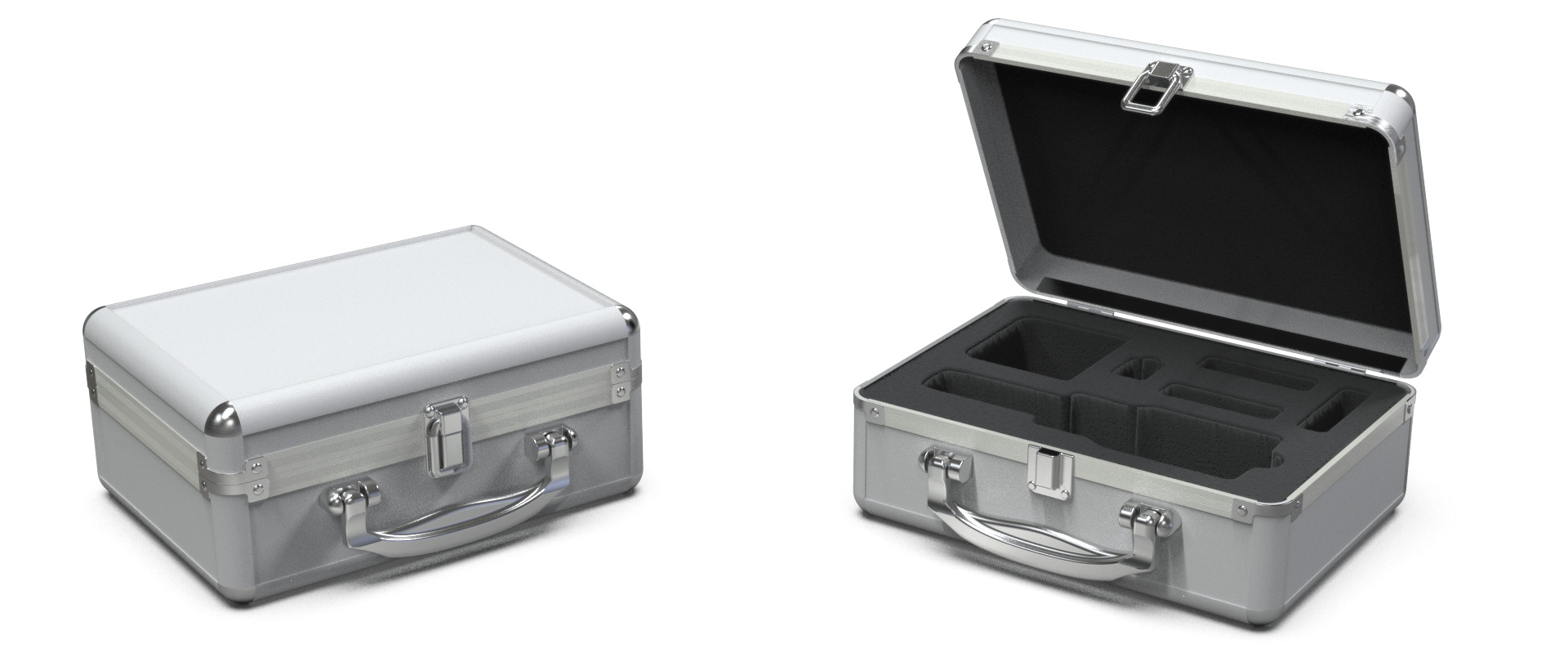

A silver color closed hard carry case and an open hard carry case with a foam cutout inside.

Testimonials

They have very interesting products, one of which we already ordered and used for some time in the service department with very good results.
I tested this thermometer simultaneously with the digital thermometer from Cooper Surgical when I did calibration to my L126 IVF dual workstation from K-Systems with the engineer from Thailand. The results are compatible with both of them.
Besides, it’s much cheaper than K-Systems.
We are using Metrum 2 series devices easily and fondly for service purposes. It really makes our job a lot easier.
